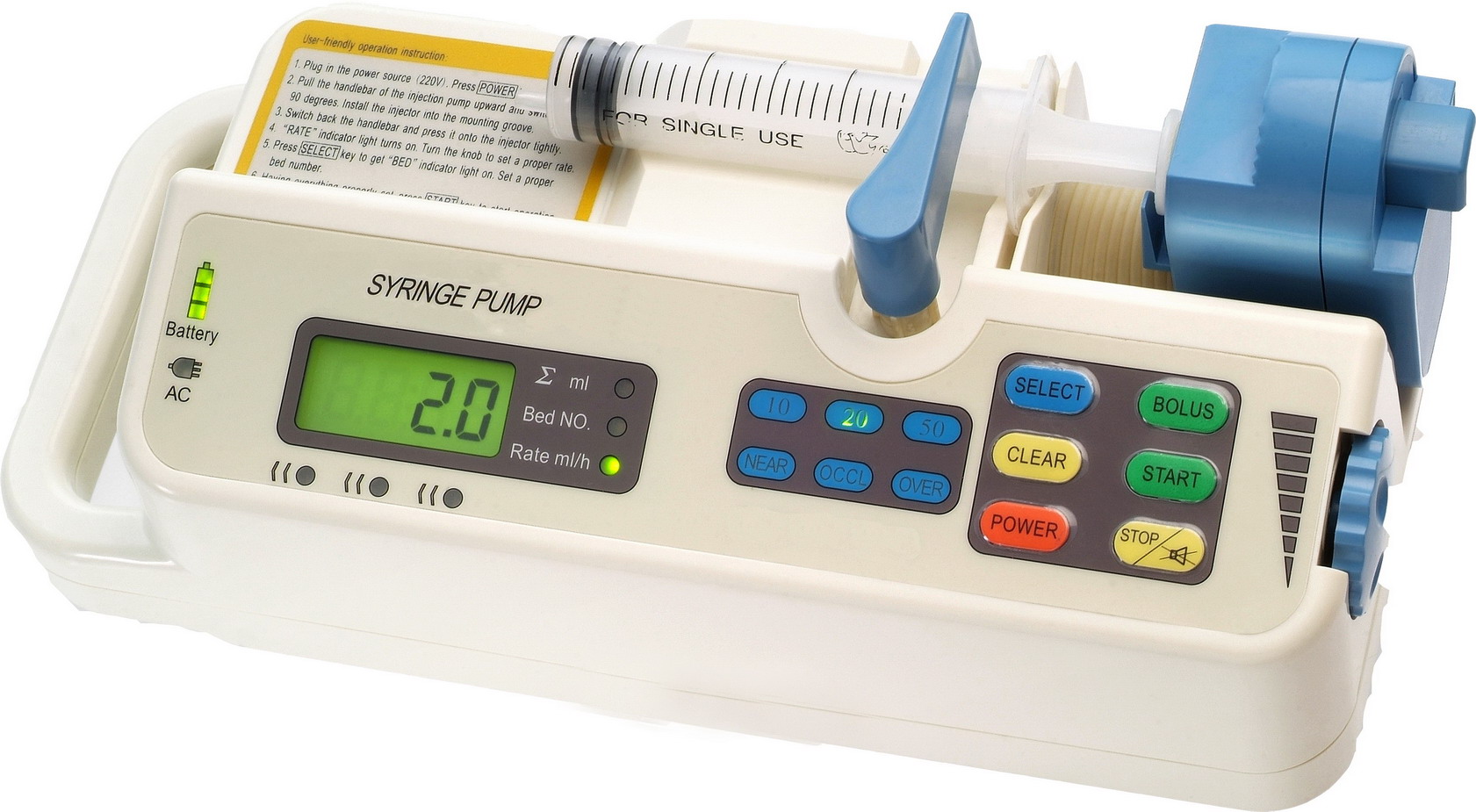

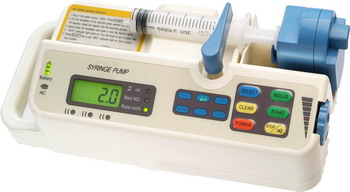

| 1, Awarded with ISO13485: 2003 (TUV Germany) and CE certification (CE0197)
2, All standard syringes of 10ml, 20ml, 50ml(SK-500I), 1ml, 5ml,10m(SK-500IA) are compatible. The machine diagnoses the syringe size automatically, and with a simple syringe specification setting, the syringe pump can guarantee an accurate and safe injection.
3, Unique function of bedside injection supervision which makes patients and their relatives as well as nurses more assured.
4, Excellent injection function and operation. Even small-volume injection is accurate.
5, Double CPU system ensures safe and reliable injection process.
6, Driven by precision step motor, no pulsating waves shall occur during even low-rate injection.
7, Accurate and sensitive pressure sensor detects occlusion pressure accurately.
8, Alarms are given in case of malfunction or operation error and the machine stops operation automatically.
Applicable Syringes |
All brands of stand syringes:
|
|
Weight |
< 3.0kg |
500I |
10ml,20ml,50ml |
Dimension |
3801×901× 80mm |
500IA |
1ml,5ml,10ml |
Power supply |
AC100V~240V ; 50/60HZ
|
Accuracy |
±3% |
Fuse |
T2AL 250V |
Injection rate |
10ml:0.1~100ml/h
20ml:0.1~200ml/h
50ml:0.1~500ml/h
|
Maximum Power consumption Battery
|
25VA, run for 4h after being charged.
Rechargeable lithium Polymer battery,7.4V,1600mAh
|
1ml:0.1~10ml/h
5ml:0.1~50ml/h
10ml:0.1~100ml/h
|
Battery recharge |
When the pump is connected to the AC power supply, turn on the power and the battery will automatically recharge (about 8-14 hours to recharge fully.) |
Accumulated volume |
0.1ml~999.9ml |
Electrical safety |
Comply with the requirement of IEC60601-1;1996 |
Increment
|
0.1ml/h
|
Electromagnetic compatibility |
Comply with the requirement of IEC60601-2;2006 |
Bolus rate |
500I |
The fastest rate of the size of syringe in use |
Shell material |
ABS plastic |
Classification |
Class II, Type BF |
500IA |
No bolus |
Operating conditions |
Environment temperature 5~ 45℃ .air pressure 86kPa~106kPa, relative humidity < 80% |
Displayed information |
Rate, accumulated injection volume, Syringe size, battery capacity, bed No., AC power indicator, battery charge indicator |
Storage conditions |
Environment temperature -40°C ~ 55°C , air pressure 50kPa ~106kPa, relative humidity < 95 % |
Alarm functions
|
Over, Near, Occlusion, low battery, syringe disengaged, No AC power supply, Serious low battery |
Applied standards |
IEC60601-1: 2005
IEC6 0601-2-24 : 1998
IEC6 0601-1-2 : 2006
ISO780-1997
ISO15223: 2000
ISO7886-1: 1993
ISO / IEC: Guide No. 37 <Consumer Goods Usage Instructions
|
|
|
