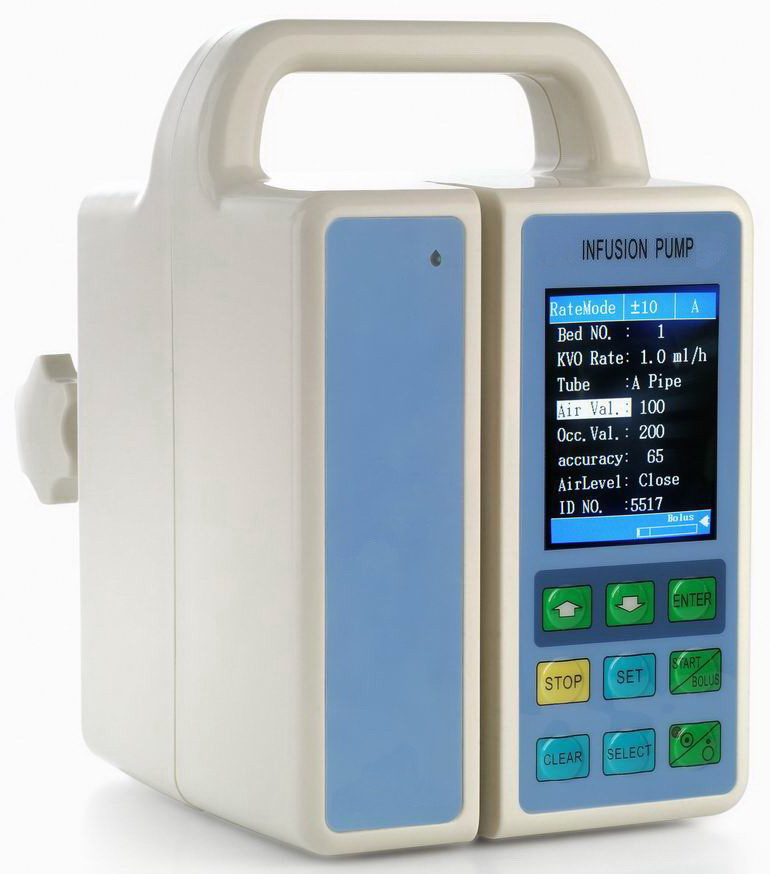

| 1. Three kinds of modes: Rate Mode, Time Mode, Body Weight Mode.
2. Unique door -free structure: Avoiding problems of pump stuck and fluid leakage.
3. Double CPU: Making the process of infusion safer and more reliable.
4. Accurate Injection: Precise control of the infusion rate and infusion volume.
5. Flow rate range: 1.0 ml/h-2000.0 ml/h.
6. Driven by step motor: No pulsating wave will be educed even during low-rate injection.
7. Alarm is given in the following situations: Infusion Completion, Occlusion, Low Battery, Air Bubble, Installation Error, Malfunction or Operation Error.
8. IV Set: All brands of standard IV sets are compatible.
9. KVO rate can be selectable according to concrete requirements from 1.0 ml/h to 5.0 ml/h.
10. Wireless Module Control: When used with 2000II or Data Collector terminal, the infusion information will be transferred to the Infusion Supervision system in order to ensure the patients' safety.
11. Big Color LCD.
Dimension |
120×140× 190 mm |
|
Accumulated infusion volume |
0.1~9999.0 ml |
Maximum weight |
< 2.0 kg |
Infusion accuracy |
±3% |
Displayed information |
RATE
VOL.LIMIT
∑( accumulated infusion volume)
Battery charge indicator
AC power indicator
Over
OCCL.
AIR
BED No.
|
Alarm function |
Over
OCCL.
Low battery
IV line installation error
AIR
EMPTY
Machine malfunction
|
Fuse |
T 2AL 250V~ |
KVO rate |
1.0 ml/h-5.0 ml/h |
Maximum power consumption |
25VA, running more than 4 hours after being charged |
Selectable modes |
Rate mode, Time mode, Weight mode |
Infusion rate range |
1.0-2000 ml/h |
Rate mode |
0.1~2000.0 ml/h |
Bolus |
1000.0 ml/h |
Time mode |
Volume limit: 0.1~999.9ml Time: 1~2000 minutes |
Operation conditions |
Environment temperature 5 ℃ ~40 ℃ , air pressure 86kPa~106kPa, relative humidity <80% |
Body Weight mode |
Drug limit: 0.1~999.9 mg, Volume limit: 0.1~999.9 ml. Weight: 0.1~ 300.0 kg , Dose: 0.1~9999.9
Selectable unit: mg/kg/h, ug/kg/min
|
Electrical Safety |
Comply with EN60601-1 for medical equipment and EN6 0601-2-24 |
Battery |
Rechargeable lithium polymer battery, 7.4V, 1600 mAh |
Applicable infusion sets |
All standard IV sets |
Storage |
Environment temperature-20~ 55 ℃ , air pressure 50~106kPa, relative humidity <95% |
|
|
