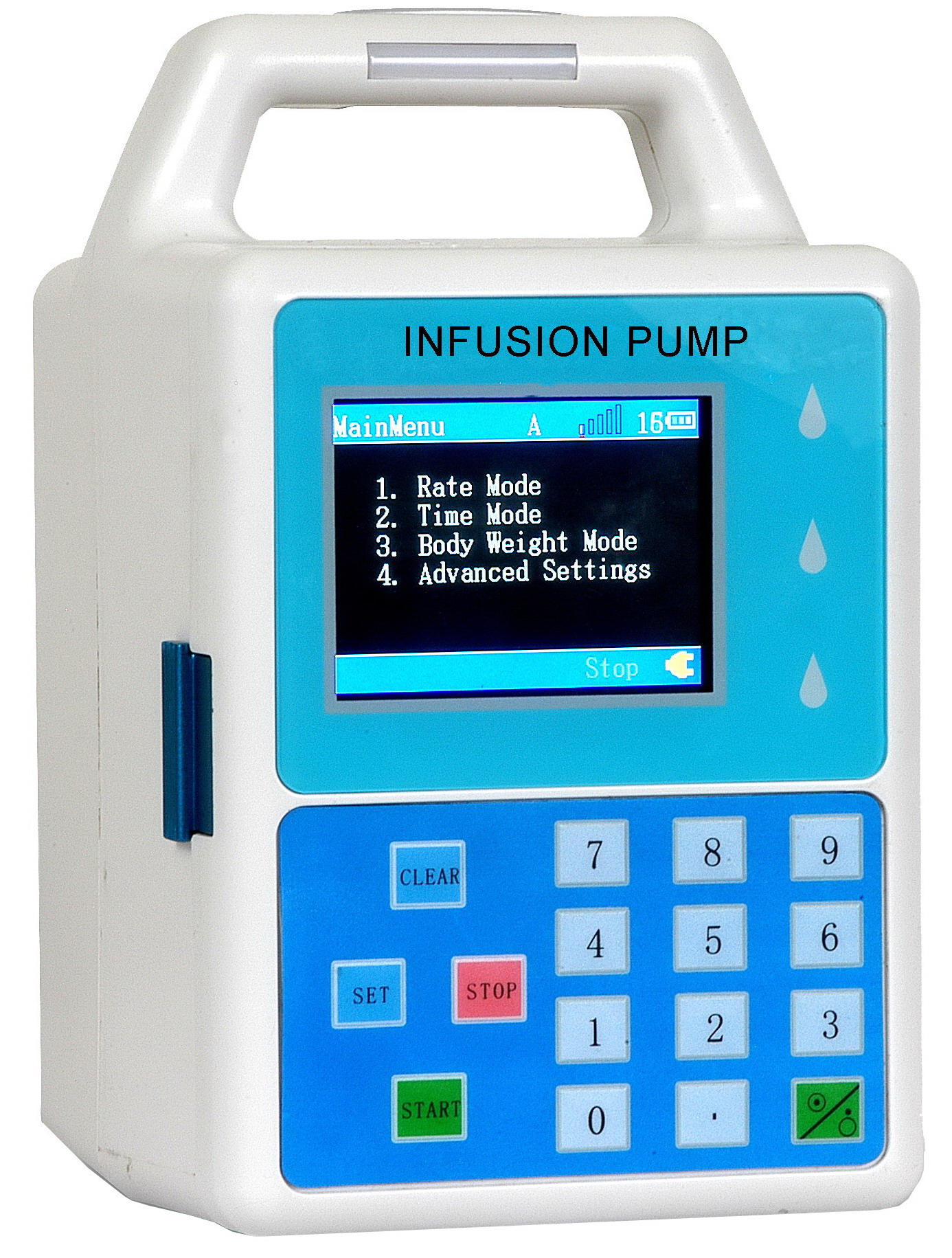

| 1. Four kinds of modes: Rate mode, Time mode, Body Weight mode, Drop Counter mode.
2. High-definition Large-screen color LCD, English language interface, making it more easier to operate.
3. Double CPU makes the process of infusion safer and more reliable.
4. Widely application scope of infusion rate, 1ml/h ~2000ml/h.
5. Drop Counter inspection and automatic control, automatic conversion between ml/hour and drop/minute, one-touch switch display.
6. Display of the drug names.
7. With data lock to prevent accidental modification of infusion parameters.
8. Display battery capacity.
9. All standard brands of infusion pipes are applicable, press buttons for selection to achieve accurate, smooth and safe infusion.
Max. size of outer shell |
129mm × 150mm × 172mm |
Max. weight |
< 2.2 kg |
Power Supply |
AC100V ~ 220V, 50H z~ 60Hz |
Max. power consumption |
25VA, work for continuous 4 hours after fully recharged. |
Flow rate range |
1ml/h ~ 2000ml/h |
Infusion increment |
0.1ml/h |
Bolus rate |
1000ml/h |
Accumulated volume |
0.1ml ~ 9999.9ml |
KVO rate |
Adjustable scope: 1.0ml/h ~ 5.0ml/h |
Infusion accuracy |
+ 5% (up to + 2% after calibration.) |
Volume limit
(Initial validity) |
0.1ml/h ~ 9999.9ml/h (“ 0” for turning off the setting function of the volume limit ) |
Preset time setting (Initial validity)
|
0 ~ 99 hours 59 minutes
(“ 0” for turning off the setting function of pre-set)
|
Battery recharge |
Rechargeable Lithium Polymer battery, work for 5 hours after being fully recharged (25ml/h) |
Applicable infusion pipe |
All brands of normal infusion pipes in line with national standard. |
Occlusion value |
400mmHg ~ 900mmHg, adjustable, graphical display the pressure. |
Mode selection |
1. Rate mode 2. Time mode 3. Body Weight mode 4. Drop Counter mode |
Rate mode |
Rate: 1ml/h ~ 2000.0ml/h |
Time mode |
Volume: 0.1ml ~ 999.9 ml Time: 1min. ~ 2000 min. |
Body Weight mode |
Weight: 0.1kg ~ 300.0kg Drug: 0.1mg ~ 999.9mg Volume: 0.1ml ~ 999.9ml
Dose: 0.1 ~ 9999.9 (restricted to unit, drug, solution, weight and infusion pipe)
Unit: mg/kg/h, ug/kg/min
|
Alarm function |
Infusion completion, OCCL. (Upper/Down), low voltage, air bubbles, installation error of infusion pipe, door open, abnormal 1, abnormal 2. |
Panel instruction info. |
Infusion rate, volume limit, accumulated volume, battery capacity, battery charging indicator, AC power connection indicator, infusion completion, OCCL., air bubbles inside the infusion pipe, bed No., pressure value, flow rate, etc. |
|
|
|
|
