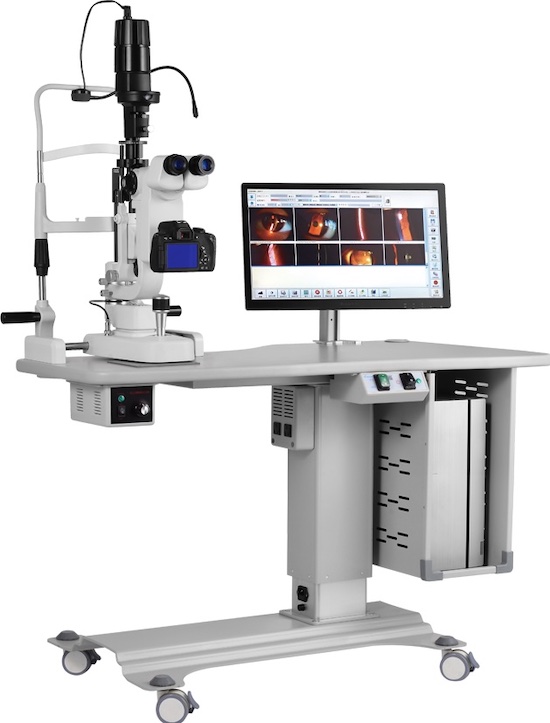

BL-88D2 Digital Slit Lamp Microscope
Professional collection media
The instrument SLR camera as a collection media, real-time dynamic display, clear and vivid images, fast image acquisition.
Camera Shortcut
External shooting device spotted lesions touch of a capture clear picture immediately.
Powerful image processing functions
Measure length, area, angle, grayscale, curvature, label the lesions in the picture, and add text.
High definition image
This instrument is capable of shooting photos of up to 18 million pixels, and offers up to 40×magnification, completely show the details,
to meet the demanding requirements of the medical image, enable the lesions to be show more clearly.
A diagnostic aid
Provide a variety of common eye checkup mode parameter set to improve examination efficiency.
With medical records management and output.
Case report can be saved, manage, print.
Configuration:
• Slit lamp
• Camera interface (splitter / adapter)
• Professional SLR camera (standard configuration does not contain a camera lens)
• Bolan slit lamp image processing systerm
• Computer (optional)
• High-resolution ink-jet printer (optional)

Microscope

Microscope Type

Galilean stereoscopic microscope

Magnification selection

5 steps by drum rotation

Eyepiece

12.5x

Magnification Ratio (Field of view )

6×(33mm), 10×(22.5mm), 16×(14mm),25×(8.8mm), 40×(5.5mm)

Pupillary Adjustment

50mm ~ 82mm

Diopter Adjustment

±5D

Base

Side Shift

110mm

Depth Shift

90mm

Height Shift

30mm

Chin rest

Height Shift

80mm

Fixation Target

Red LED

Illumination

Systerm

Slit Width

0 ~ 14mm continuous (at 14mm,slit becomes a circle)

Slit Height

1 ~ 14mm continuous

Slit angle
Slit Inclination
Diameter of Light Spot

0 ~ 1800 continuous
50, 100 , 150, 200 Ф14mm,Ф10mm,Ф5mm,Ф3mm,Ф2mm,Ф1mm,Ф0.2mm,Ф1mm and Ф1~14mm continuous

Filter

Heat Absorption, Grey, Red-Free, Cobalt, Blue, Green, Yellow, Red, Anti-UV

Illumination bulb

12V 50W halogen lamp

Power

Input voltage
frequency Power consuption

110V/220V AC 50/60Hz 68VA

Weight and size

Gross Weight

18kg

Dimension

690mm(L)x 440mm(W)x420mm(H)


Download Literature:
BL-88D2 Digital Slit Lamp Microscope
