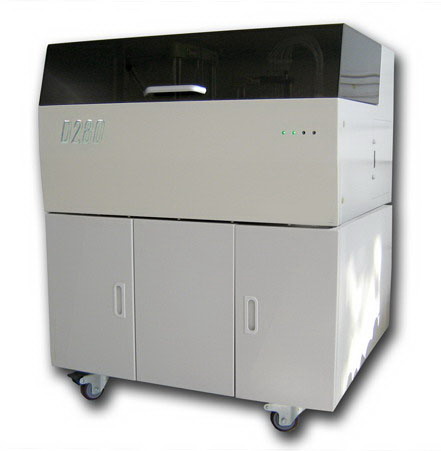

D280 Fully Auto Chemistry Analyzer
Specifications:

Model

D280

Operation

Random access

Reading System

Direct reading system

Method

End point, Kinetic, Fixed time, Bi-chromatic, Immunoturbidimetric, 1-2 reagent multistandard, reagent/serum blank, etc

Assay Item

40(80) assay items

Throughput

280 tests/hour

Sample Position

60 postions including standard, control stat; either serum cup or primary tube available

Sample Volume

1-100µL, 0.1µL/step

Reagent Position

40 positions, or 80 positions (optional

Reagent Volume

1µL-500µL, 0.1µL/step

Reagent/Sample Probe

With liquid level sensor, collision sensor

Reaction Time

0-600 seconds

Cuvette

High quality UV-transmitted plastic cuvette, or quartz glass cuvette on request

Washing

8 channels automatic washing system for cuvette, washing station for each sample/reagent probe and mixer

Alarm

Automatic alarm for malfuction
(e.g: collision, reagent and distilled water insufficiency, waste container ful, etc)

Calibration

Linear, Non-linear, Multi point, K factor

Sample Dilution/Retest

Sample can be diluted and retested if results are out of range

Wavelength

240, 405, 505, 546, 578, 620, 670nm(standard), 330, 380, 492, 510, 600, 630, 650, 660, 700, 750, 800, 810nm (optional two filters)

Light Source

Halogen lamp

Absorbance Resolution

0.0001A

Absorbance Accuracy

0-0.5A: ±0.02A; 0.5-1.0A: ±0.04A; 1.0-1.5A: ±0.06A

Repeatablility (CV%)

ALT<3%, urea<2.5%, TP<1.5%

Quality Control

Levy jennings quality control program at 3 levels

Bar Code

Optional

Printer

Multiple report formats available

Other

Tele-diagnostic, bi-direction interface to LIS syste, etc

Language

English, French, Spanish, German, Russian, etc

System

Windows XP or Vista

Power Supply

220V/50Hz, or 110V/60Hz

Dimension

85cm x 72cm x 53cm

Weight

90Kg

Download Literature:
D280 Auto Chemistry Analyzer
Right click and save as... to download the literature
