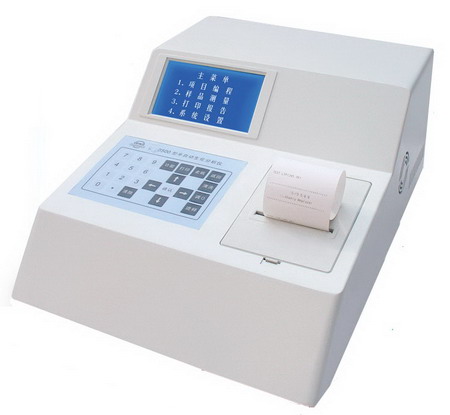

Introduction
The machine is designed with creation technology, integrated with advanced light technology, micro-computer technology to get smaller size and more comprehensive function and better performance and more convenient operation.
Features
1. Control and manage data through built-in micro-processor
2. High automated level, with many automated functions, such as auto wavelength transform, auto print, auto display, etc
3. Open programming, reagent free-choice
4. Testing method: end point, two-point, kinetics, multipoint scaling, immune turbidity, absorbance, sample blank, single and double wavelength
5. Dynamic real-time curve display, monitoring reagent invalidation, concentration overtop, over linearity in time
6. Auto storing QC within 31 days, display and print QC chart and statistics data
7. New type storage mode, permanently protect data from suddenly power off
8. High capacity store sample test results, QC data and QC chart
9. Print item report and comprehensive sample report, store item list and every item program parameter
Specifications
1. Filters: 7 filters, 340, 405, 510, 546, 578, 620 690nm (auto transform)
2. Wavelength range: 340-700nm
3. Absorbance range: -0.3 ~3.5ABS
4. Absorbance resolution: 0.001ABS (display) 0.0001ABS (inside)
5. Stability: <0.005ABS/20min
6. Cross contamination: <0.5%
7. Flowing colorimetric cell: 10mm 32ul
8. Temperature control: 25, 30, 37°C, room temperature.
9. Once injection: 100~2000ul
10. Display: 240x128 lattice LCD
11. Printer: Built-in thermal sensitive printer
12. Interface: Standard RS232 interface
13. Power supply: 110-220V, 50/60Hz
|
|
