Features

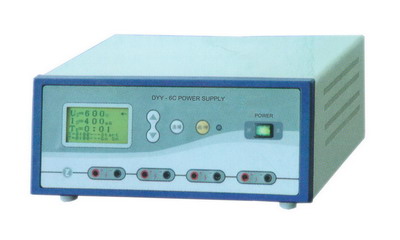

We adopt the microcomputer processor as the control center of DYY-6C, ON/OFF switch.
DYY-6C has the following strong points: small, light, high output-power, stable functions;
The LCD can show you the following info.at the same time: voltage, electric current, pre-assigned time, etc.;
It has the warning function of timing;
It has the function of storing the operation parameters of last time;
It can work in the constant state of voltage, or in the constant state of electric current, and it can be converted automatically according to the pre-assigned parameters for different needs;
It has the protection function when it is under the circumstances of the unloaded, overload, suddenload change and when it is beyond the limitation
Parameters can be adjusted finely during the running
Output terminals: 4 pairs in parallel
Main specifications
Power requirement:A.C. 220V 50Hz
Input power: about 300 VA;
Output voltage: (6-600)V (Increase or decrease:1V/step);
Output current: (4-400) mA (Increase or decrease:1mA/step);
Output power: 240 W
Stability: constant voltage <1%; constant current <2%;
Adjustment rate:constant voltage <2%; constant current <3%;
Dimension:
(W x D x H): 315 x 290 x 128 (mm);
Weight: about 5.0 kgs.
|
|
|
