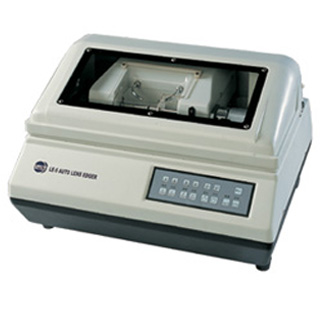

LE-8 Auto Lens Edger

The LE-8 Automatic Edger is a multi-functional fully automatic micro-processor controlled lens edger. The is able to process both glass and plastic lenses for rough edging, free curved beveling, controlled curve beveling and flat finishing. It is designed for highly efficient edging operation, easy to operate and gives precision control on lens size and shape.

Dimension of Grind Wheel Electroplated Ø125 x 18mm(W)
Metal Bonded Ø125x18(W)x2mm(T)
Bevel/Flat Ø125x19(W)x2mm(T)
Rotational Frequency From 24mm to 100mm
Rotational frequency 3150r.p.m
Dimension Body 565(W)x490(D)x365(H)mm
Table 605(W)x550(D)x750(H)mm
Weight (Body only) 44Kg
Power Supply AC.110V/60Hz AC.220V/50Hz,550VA
