Model no.

XSP-126

Drawtube

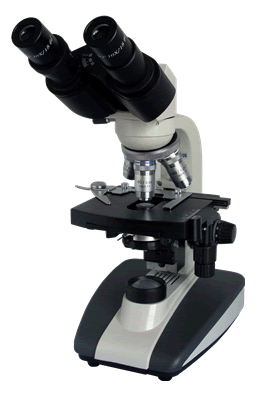

Binocular Microscope

Objective Quantity

4 PCS, 4X 10X 40X 100X (oil) 1pc each

magnification

Total magnification 40X --1600X

Mechanical tube length

160mm

Objective

4X/0.10 , 10X/0.25 , 40X(S)/0.65 , 100X(S)oil/1.25

Eyepiece

WF10X , WF16X

Working stage

125X120mm

Working stage Transversal movement 70mm
Longitudinal movement 30mm

Light Source

low-voltage tungsten filament lamp

condenser

Adjustable Abbe condenser with iris diaphragm & filter

Fine focus adjustment: 0.002

Coarse focus adjustment range 15mm
