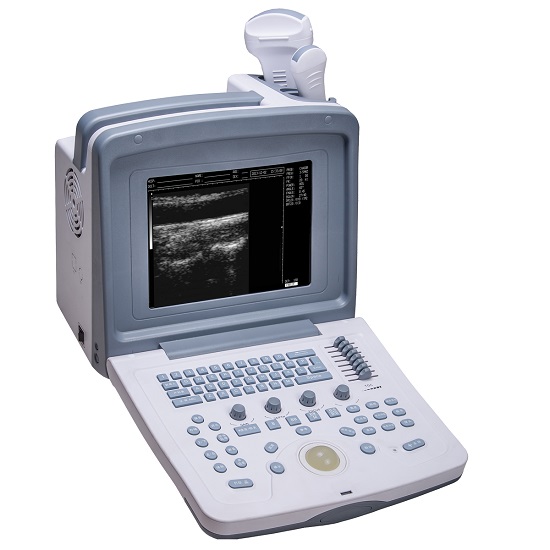

PW-9618V Vet Ultrasound Scanner

Features:
PW-9618V adopts multiple technologies such as micro-computer control and digital scan converter (DSC), digital beam-forming (DBF), real time dynamic aperture (RDA), real time dynamic receiving podization(DRA), real time Dynamic receiving focusing (DRF), Digital frequency Scan (DFS) which can display a high quality, stable and high resolution image. The external Video printer and external monitor display can be realized with the PAL-D Video output port. All the ultrasound images can download to PC with high speed USB 2.0 port. Various image processing software packages are available.

Main Unit Parameters

Scanning Model

Electronic Linear Array, electronic convex array

Cine-loop

≥400 frames

Image Storage

≥32 frames

Display Depth

≥250mm

Scanning Angle

Visible and adjustable

Display Mode

B, B+B, B+M, B+M/M, M, and 4B

Operation Interface

Chinese/English switchable

TGC Adjustment

Near Field, Far Field, Total Gain Independent Adjustment

Focus Control

Focus Number, Focus Distance, Focus Position Adjustment

Image Processing

Image Black/White, Gamma Correction, Edge Enhancement and Histogram

External Ports

External Ports: Video port, RS-232 port and USB port

Measurement

Distance, Perimeter, Area, Volume, Obstetrics (GA measurement for horses, cattle,
sheep, pigs, cats and dogs etc.)

Real-time Depth

16 levels are adjustable

Zoom

≥2 times


Download Literature:
PW-9618V Vet Ultrasound Scanner
