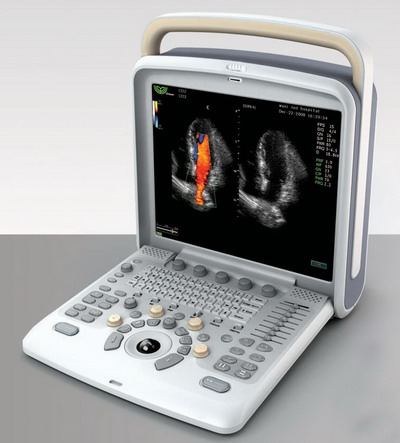

Q8 Portable Color 3D/4D Ultrasound Scanner

Features:
--Q8 is a multi-purpose, all digital,portable Color Doppler ultrasound system, which supports up to 256 probe elements. It features superior image quality across wide range of diagnostic applications, such as Abdominal,OB&GYN,Cardiac,Vascular, Small parts, Pediatric, Neonatal and Musculoskeletal.
--With its cutting-edge technologies, Q8 is one of few pioneers in the world which incorporate sophisticated features like real-time 4D, TDI, TEE scanning into one compact box.
--A Work-flow oriented User Interface is built to allow user-friendly operation with minimum soft key entry. Ergonomical design of keyboard, double probe connectors, USB and DICOM connectivity makes your scanning FAST and EASY,and allow you focus more on your patients.

--4D upgradeable
--TDI quantities cardiac analysis
--2 probe connectors
--THI on all probes
--Probe elements up to 256
--Double Phasing Digital Beam Forming

	Download Literature:
	Q8 Portable Color 3D Ultrasound Scanner
	Pictures

Optional Transducers

		V4C40L , Volumen 4D Applications: abdominal, obstetrics
		D3C60L, Convex Applications: Abdominal, Obstetrics, Gynecology, Regional nerve block, Procedure and Biopsy guidance
		D7L40L, Linear Applications: Breast, small parts, nerve, vascular, venous access, musculoskeletal, biopsy guidance
		D5C20L, Micro Convex Applications: Abdominal, Urology, vascular,Pediatric cardiology, pediatric abdominal, neonatal heads
		D6C12L , Transvaginal Applications: Obstetrics, gynecology
		D3P64L, Phase array Applications: Cardiac, abdominal, obstetrics
		TEE Applications: Cardiac
