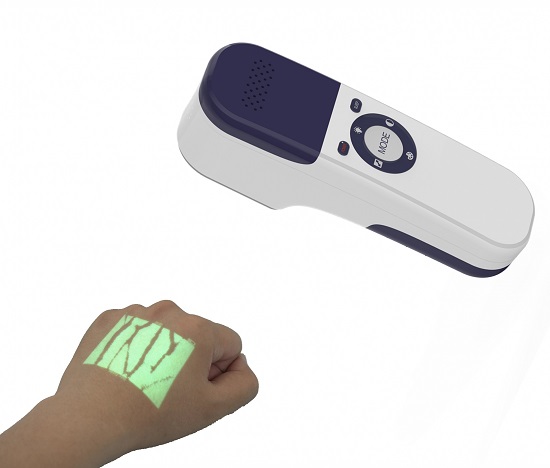

QV-500 Vein Finder

QV-500 Vein Finder is a portable vein finding device. It can project the blood vessels image on skin surface accurately and timely. The ergonomic design makes it very comfortable to hold. And the optional desktop stand and mobile trolley are available for multiple application situations.

Help doctors and nurses easily find veins of various patients, such as obesity, hairy or dark skin people, etc. It highly increases the success rate of puncture thus reduces the cost and pain.

This device also can be used to examine patients with varicose veins, and avoid closed or bifurcated veins

Functions
QV-500 Vein Finder has various user-defined functions, which can adapt to different ages, body shapes, skin colors, weights and various operating environments.

- Seven Colors: Suitable for different skin colors or environments
- Three Sizes: Suitable for adults, children and newborns
- Five Levels of Brightness: Adjust the projection image to the most comfortable brightness.
- Inversion: Reduce hair interference and make blood vessels clearer.
- Enhance Mode: Enhance the clarity of blood vessel detection.
- Sleep Mode: Enter into low power mode when the user needs short intervals and can be waked up quickly.

Parameters
- Infrared light detection without harm to human body
- Infrared Wave: 760-940nm
- Infrared detection depth: 0-8mm
- Best detection distance: 15-25cm
- Project alignment accuracy: +0.3mm
- Low working noise: ≤20dB
- The battery power can be displayed at upper projected image and Low Battery power prompt
- Panasonic 3400mA rechargeable lithium battery
- American TI projection technology
- Power supply of charging: OUTPUT 5V 2.0A, INPUT100V-240V ac 50Hz-60Hz
- Weight: 280g
- Size: 20cm(L)*6.2cm(W)*5.5cm(H)

.

Download Literature:
QV-500 Vein Finder
