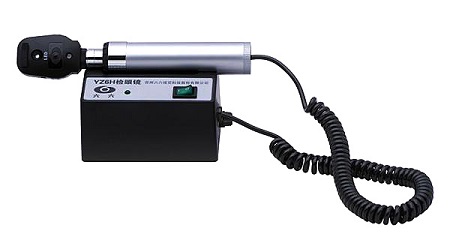

YZ6H Ophthalmoscope

The product adopts the advanced LED bulb which is durable enough(with designed service life of 100,000 hours) and has uniform light spot.

- LED cold light source with the designed service life of 100,000 hours.
- Low heat benefits from the cold light source.
- Bulb maintains the 3200K for long time to provide soft and sunlight like illumination.
- UV radiation is cut to fully protect patient's eye.
- Provide uniform illumination spot and sharp fundus image.
- Soft rubber is used around the eyehole to protect eyes and stabilize the ophthalmoscope.


Illumination Type

Large Spot, Small Spot, Slit, Net, Red Free

Diopter Compensation

0, ±1D, ±2D, ±3D, ±4D, ±5D, ±6D, ±8D, ±10D, ±12D, ±16D, ±20D, -25D, -35D

Light Source

3.5V/1W LED Bulb
Color Rending Index ≥90%
Illuminance ≥80 Lx

Input Voltage

AC220V ±10%, 50Hz±1Hz
